Name: MTV-4000 (2MP)
Brand: MAVITEK
SKU: MTV-4000 (2MP)

MTV-4000 Series

MTV-4000 (2MP)

Resolution	1920 x 1200
Frame rate (fps)	60
Colors/Black & white	Black & white
Shutter	Global
Exposure time	20µm - 1s
Pixel size	3µm x 3µm
Target size	1/2.6"
Focusing method	Mechanical
Focal length	8mm, 12mm, 16mm
Working distance	100-1000mm

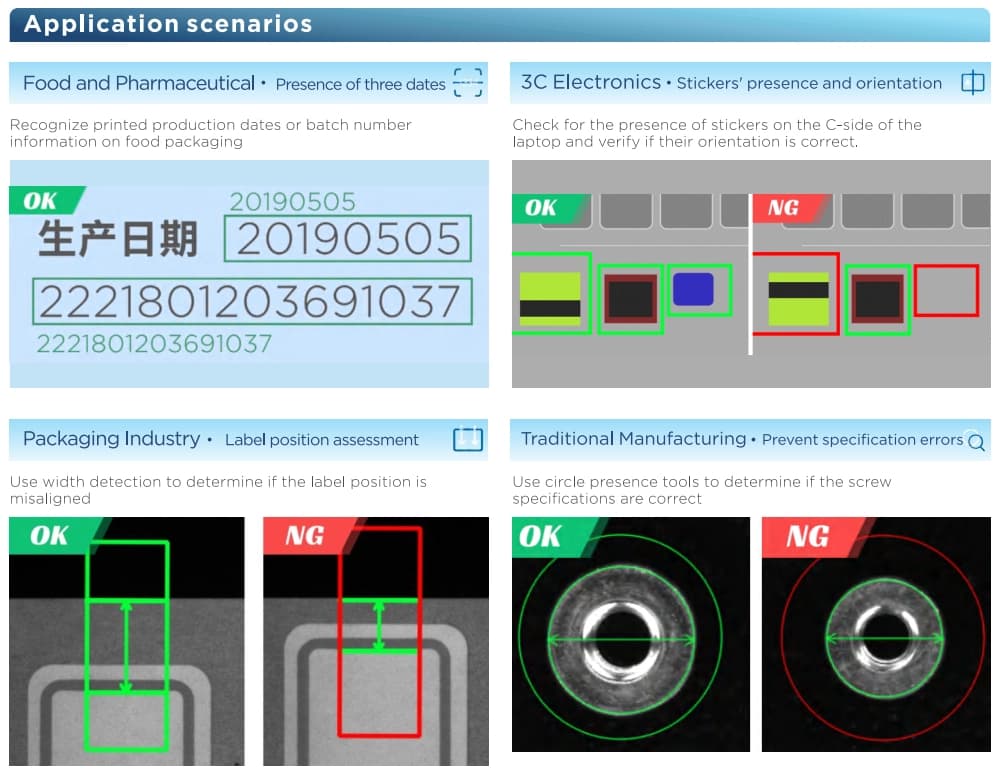

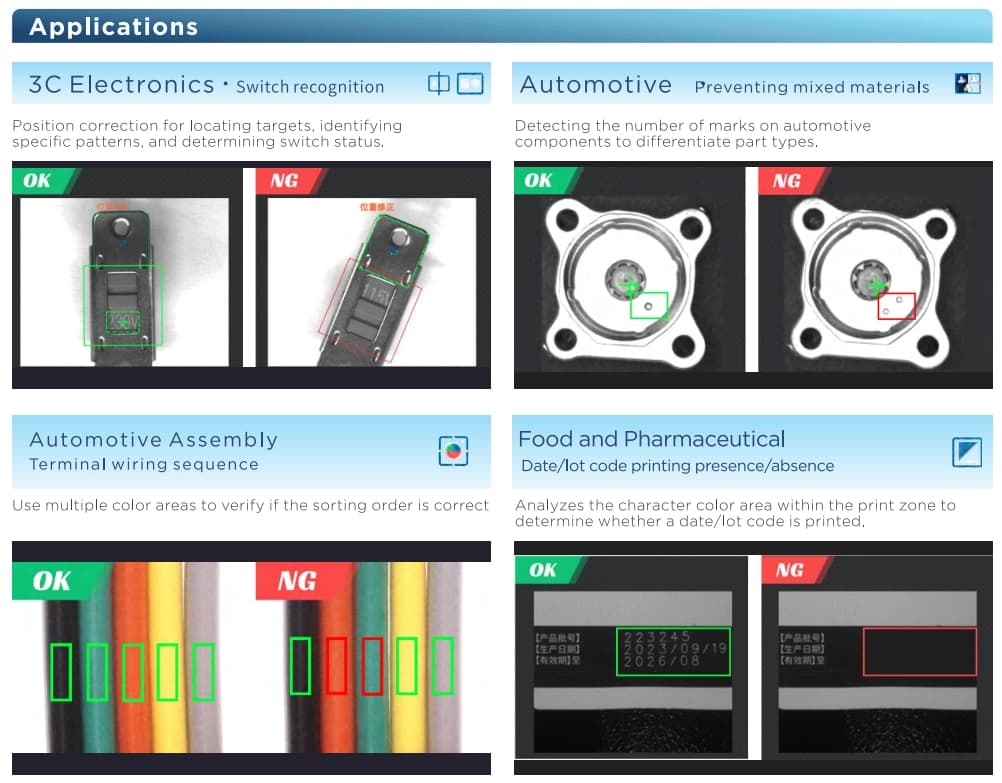

Algorithm/tool	"Positioning: position correction Presence: pattern presence, spot presence, edge presence, circle presence Counting: pattern counting, spot counting, edge counting Detection: width detection, spot detection, grayscale area Recognition: character recognition, code reading, classification Logic: logical judgment, numerical ranking"

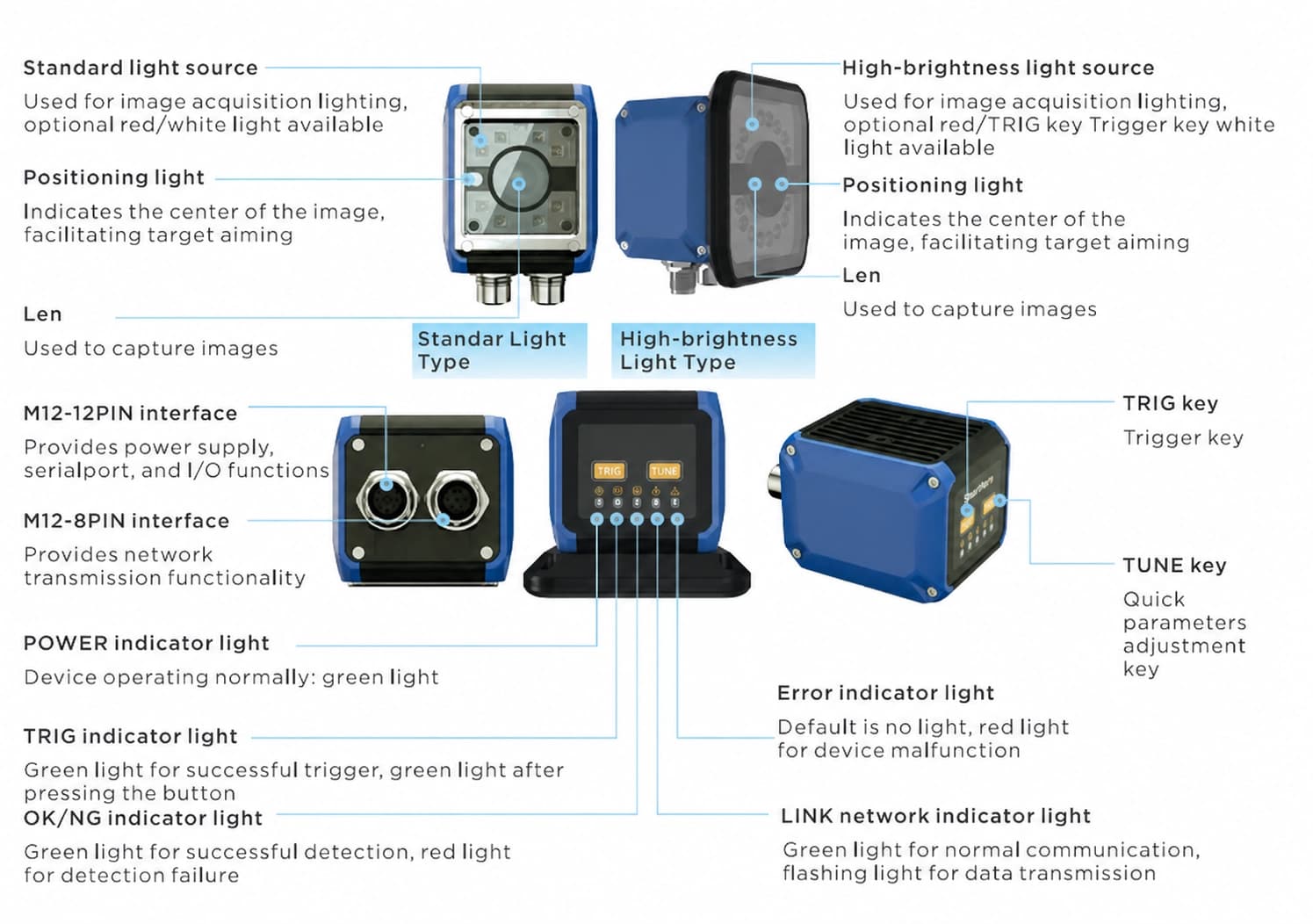

Position indicator	A green light spot indicates the center of the detection area.
Status indicator	Five status LEDs and a buzzer
Polarizer	Provide non-polarized and semi-polarized.
Light source	Standard light source (8 LEDs), providing red/white light options.
Input control	Two-channel input control, opto-isolated - supports NPN and PNP types.
Output control	Three-channel output control, opto-isolated.
Communication interface	RS232, Ethernet
Communication protocol	TCP Server, TCP Client, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, MELSEC/SLMP, Serial
Power input	24 VDC
Power consumption	15W
External dimensions	5853.569mm
Weight	Approximately 295g
Working temperature	0~45°C
Storage temperature	-20~70°C
Humidity	5%~95%RH (Non-condensing)
Protection level	IP67
