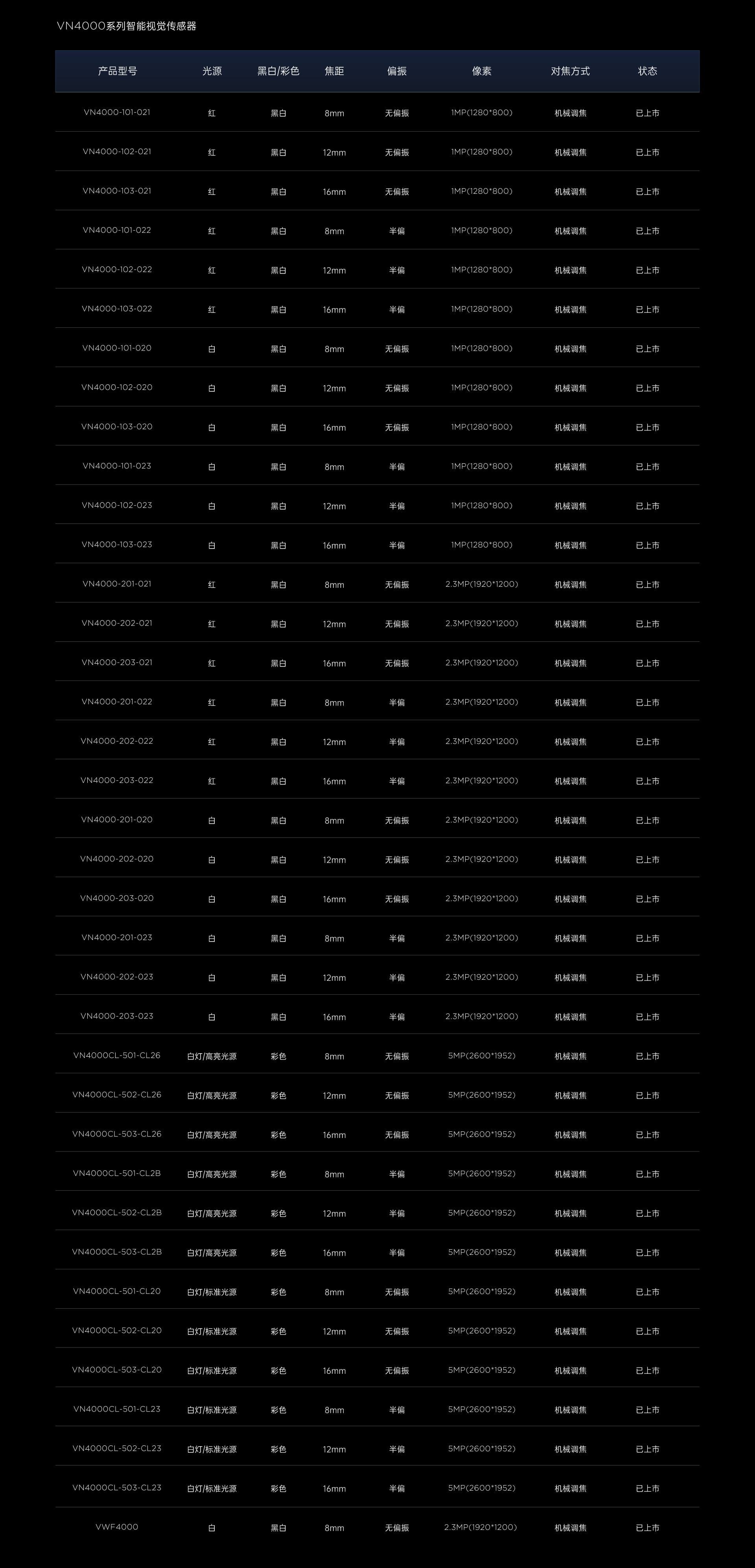

VN4000 Series
VN4000CL (5MP)
VN4000CL (5MP)
| Resolution | 2600 x 1952 |
| Frame rate (fps) | 30 |
| Colors/Black & white | Colors |
| Shutter | Rolling |
| Exposure time | 20µm - 100ms |
| Pixel size | 2.2µm x 2.2µm |
| Target size | 1/2.5" |
| Focusing method | Mechanical |
| Focal length | 8mm, 12mm, 16mm |
| Working distance | 100-2000mm |
| Algorithm/tool | "Positioning: position correction Presence: pattern presence, spot presence, edge presence, circle presence Counting: pattern counting, spot counting, edge counting Detection: width detection, spot detection, color area Recognition: character recognition, code reading, classification Logic: logical judgment, numerical ranking" |
| Position indicator | A green light spot indicates the center of the detection area. |
| Status indicator | Five status LEDs and a buzzer |
| Polarizer | Provide non-polarized and semi-polarized. |
| Light source | High-brightness light source (16LEDs), white light |
| External dimensions | 75.1*65.5*91.6mm (High-brightness light type) |
| Weight | Approximately 380g (High-brightness light type) |
| Working temperature | 0~45°C |
| Storage temperature | -20~70°C |
| Humidity | 5%~95%RH (Non-condensing) |
| Protection level | IP67 |
| Input control | Two-channel input control, opto-isolated - supports NPN and PNP types. |
| Output control | Three-channel output control, opto-isolated. |
| Communication interface | RS232, Ethernet |
| Communication protocol | TCP Server, TCP Client, ModBus TCP, ModBus RTU, Profinet, Ethernet/IP, MELSEC/SLMP, Serial |
| Power input | 24 VDC |
| Power consumption | 15W |
