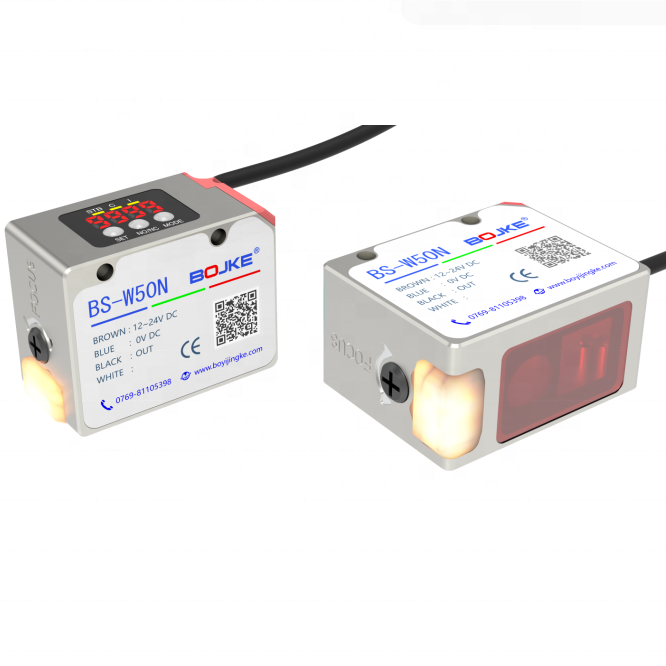

Name: BS-W50N
Brand: MAVITEK
SKU: BS-W50N

BS-W50N Series

BS-W50N

Features:: Allows for jitter tolerance, accurate color recognition, and ultra-long-distance sensing
Detection distance:: 500mm (long distance)
Output method:: NPN and PNP models are optional

Type	One output port, one external output port wire lead type
Model	BS-W50N/BS-W50P
Light source	White LED with adjustable beam size, minimum beam diameter 3.6mm.
Power supply	12 to 24VDC ±10%, fluctuation ratio (PP): maximum 10% level 2
Output method	NPN/PNP output
Reaction time	AUTO, C and CI modes: 200US; MARK mode: 160US
Control output	NPN/PNP open-type current collector 24V, maximum 100mA (main component only), maximum current draw 40mA (when extension components are connected, residual voltage: 2V).
Detection method	The options are: disconnect delay timer/enable delay timer/single timer/enable single-time delay timer. The timer display shows a selectable duration from 1ms to 9999ms.
Output selection	LIGHT-ON/DARK-ON (Button menu selection)
Display indicator	Operation indicator lights: red light-emitting diodes, LED screen display
Power/Consumption	Maximum voltage: 24V, current up to 60mA
Working environment brightness	Incandescent bulb: Maximum: 20,000 lux, Daylight: Maximum: 30,000 lux
