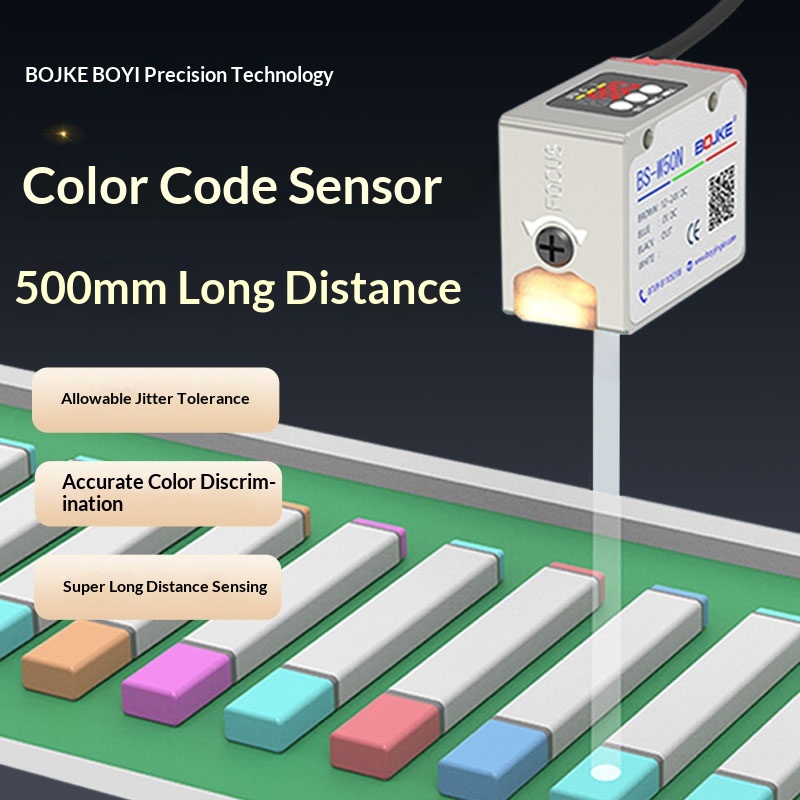

Name: BS-W70N/BS-W70NP
Brand: MAVITEK
SKU: BS-W70N/BS-W70NP

BS-W50N Series

BS-W70N/BS-W70NP

Features:: Includes additional self-learning during self-learning and two-point teaching functionality.
Detection distance:: 20mm-150mm (long distance)
S-output mode:: NPN or PNP models are optional

Type	BS-W70N (NPN) / BS-W70NP (PNP)
Model	BS-W70N/BS-W70NP
Light source	Two white LEDs, with a minimum spot size of 1.5 x 3 mm at a distance of 50 mm.
Power supply	12 to 24VDC ±10%, Floating ratio (PP): Maximum 10% Level 2
Control output	One output port, one external output port wire lead-out type, white wire external self-learning.
Delay function	The options are: disconnect delay timer/enable delay timer/single timer/ enable single-time delay timer . The timer display shows a selectable duration from 1ms to 9999ms.
Detection method	AUTOC, CI, and MARK modes : Detection distance: 20mm-150mm (long distance)
Display indicator	Operation indicator lights: red light-emitting diodes, LED screen display
Power consumption	Maximum voltage: 24V, current up to 60mA
Ambient temperature	-10 to +55°C, no freezing
Vibration resistance	10 to 55 Hz, dual amplitude: 1.5 mm, X and YZ axes are 2 hours each.
Working environment brightness	Incandescent lamp: Maximum: 20,000 MHz; Daylight lamp: Maximum: 30,000 MHz
